Park Tool PRS-30 Mechanical Lift Repair Stands

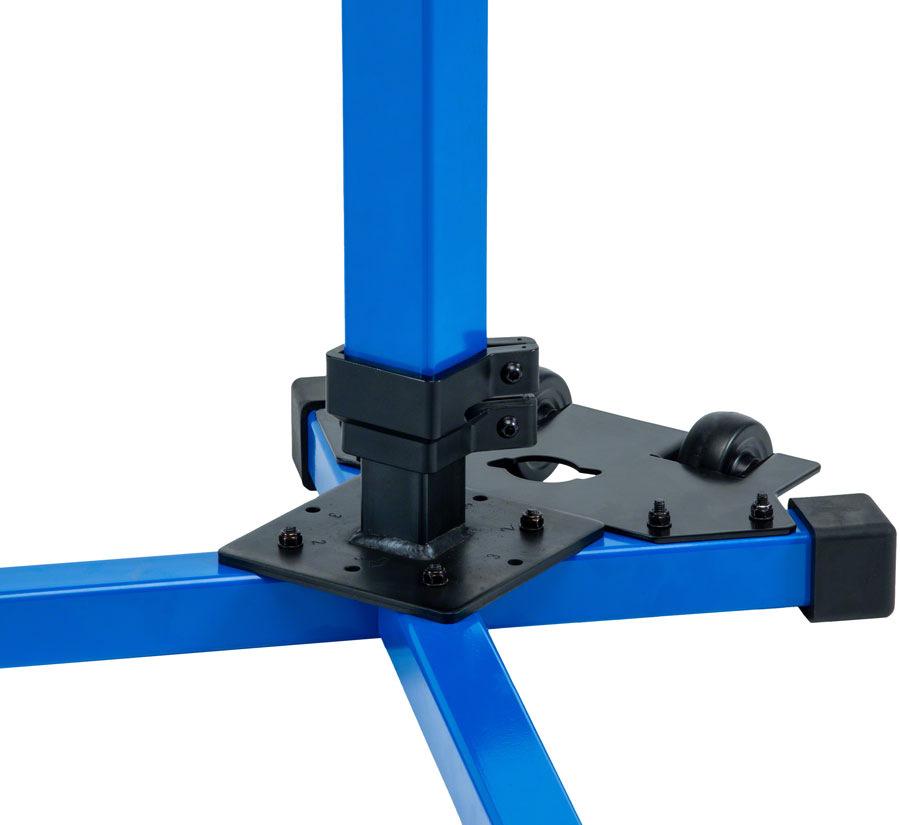

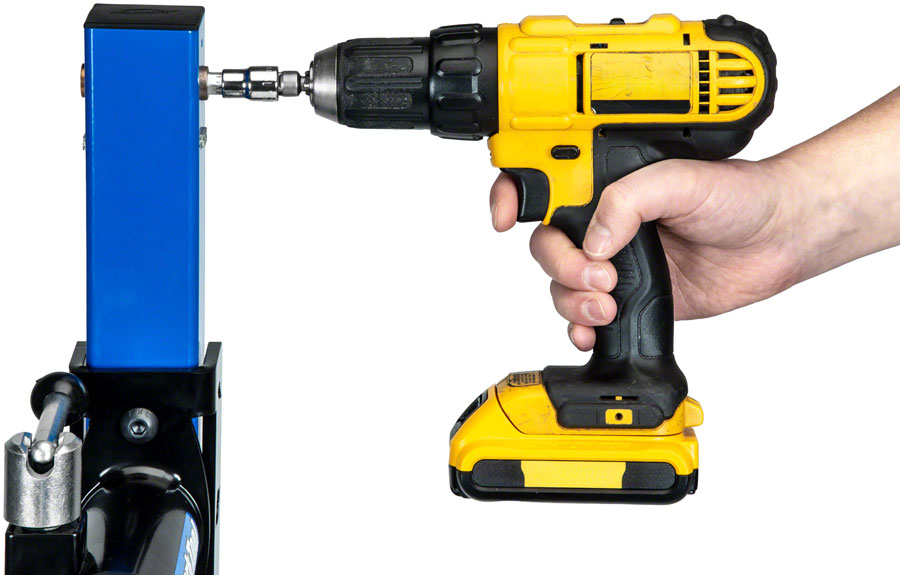

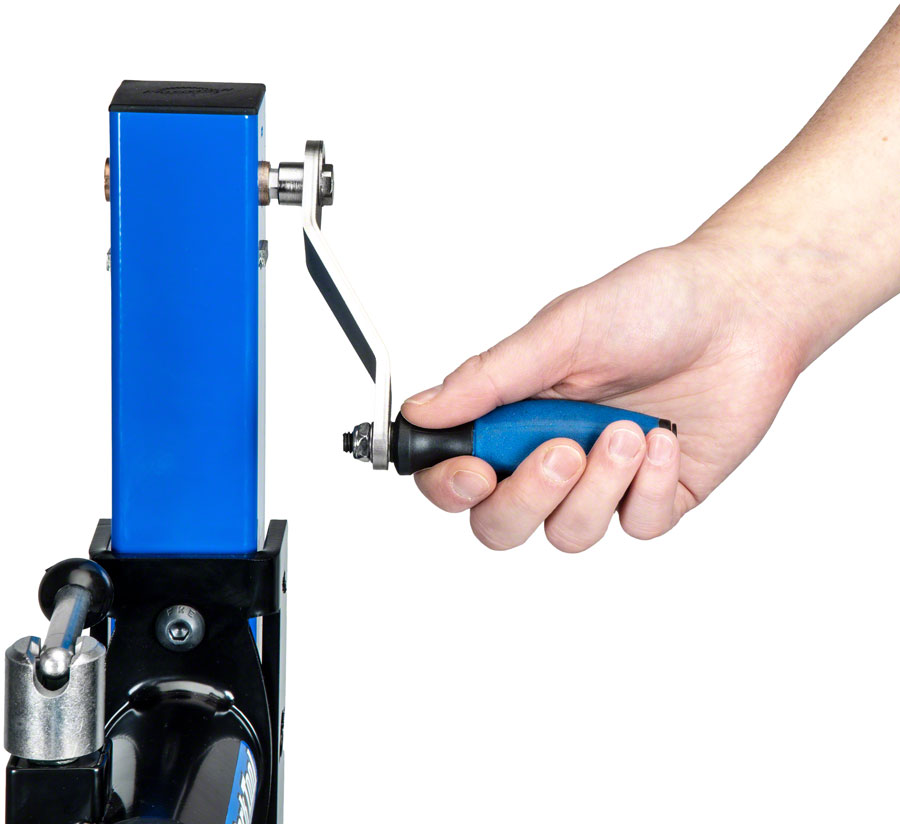

The PRS-30 solves one of the biggest challenges of e-bike maintenance repair and cleaning: getting it off the ground. With a footprint no larger than a traditional bicycle repair stand the PRS-30 easily lifts and lowers bikes up to 120 lbs. (54 kg) with ease. The professional-grade clamp lowers to a height of 29" (74 cm) allowing you to clamp onto the seatpost or seat tube of most bicycles without needing to lift them into the stand. From there the PRS-30 features 23" (58 cm) of height adjustment elevating the bike to a comfortable position for removing wheels tuning the drivetrain cleaning the chain or any other procedure. Height adjustment is accomplished using an internally-geared mechanism driven by a simple hand crank. Height can also be adjusted using a common battery-operated drill with 10 mm socket for truly effortless lifting of heavy bicycles. Built to the same standards as our legendary professional repair stands the PRS-30 is built from all-steel components and powder coated for a lifetime of use. The PRS-30 features sturdy legs with integrated wheels for easy repositioning.

Maximum weight capacity is 54 kg (120 lbs)

Product weight is 20 kg (44 lbs)

Clamp capacity for round and aero tubes from 23 to 76 mm (7/8" to 3") wide

Adjustable clamp height from 74 to 132 cm (29" to 52") with an option to install 10 cm (4") lower for a range of 64 to 122 cm (25" to 48")

Full stand height at maximum adjustment is 157 cm (62") with replaceable jaw covers (part #1960)
